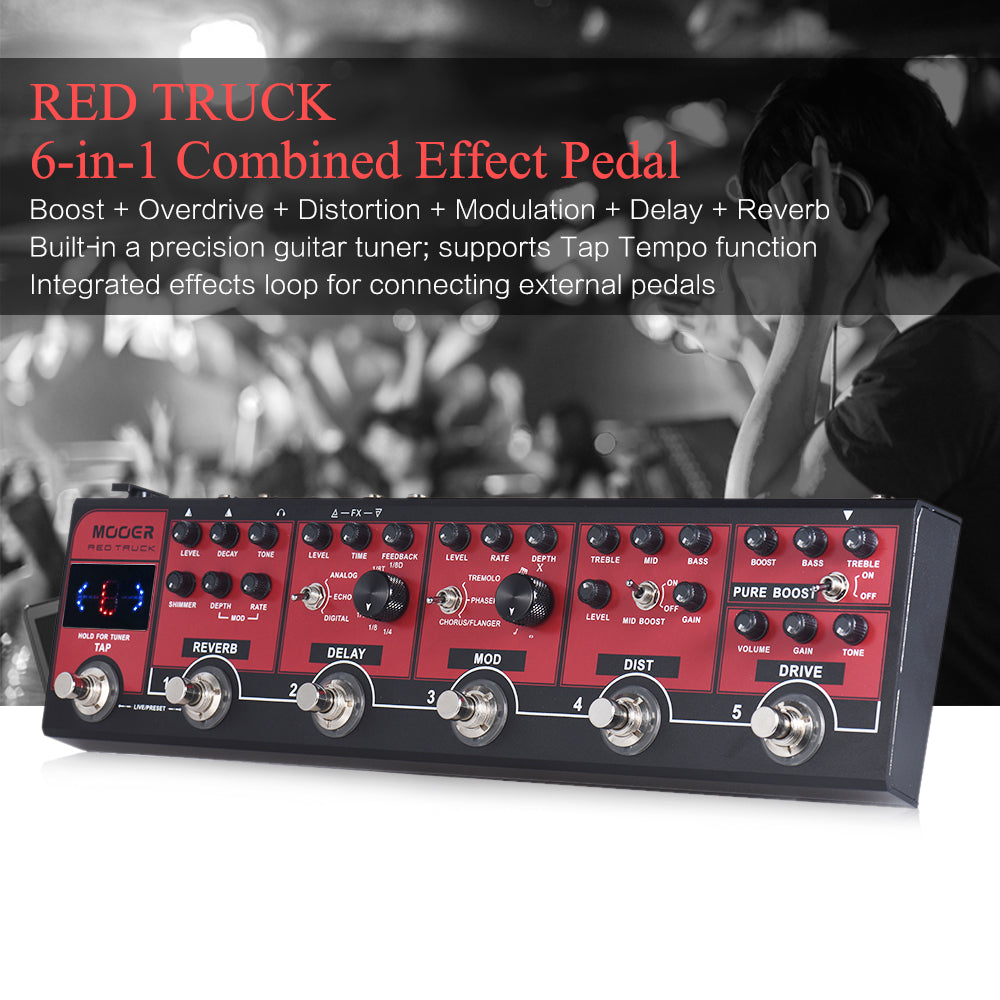

MOOER RED TRUCK

• 6 effects built into 1 simple pedal unit: Boost + Overdrive + Distortion + Modulation + Delay + Reverb, and with full featured controls for each effect.
• Built-in a precision guitar tuner with LED display; and Tap Tempo can control both the delay time and modulation rate simultaneously or independently.
• Has 2 operation modes: LIVE mode(each footwitch controls its respective effects module) & PRESET mode(each footswitch recalls a preset combination).
• Integrated effects loop for connecting external pedals or for connecting an amplifier via 4-cable method.
• Supports mono/ stereo output, and with a direct output with speaker simulation for connecting headphone, mixing console or other audio interface.
• Full metal shell with compact size, durable and portable; and comes with a carry case for easy transportation.

Specifications:

Boost Controls: ON/OFF, BOOST, BASS(±15db), TREBLE(±15db)
Overdrive Controls: VOLUME, GAIN, TONE
Distortion Controls: TREBLE, MID, BASS, LEVEL, MID-BOOST, GAIN
Modulation Controls: LEVEL, RATE, DEPTH, RYTHM, Modulation Type Select(TREMOLO,PHASER, CHORUS/FLANGER)
Delay Controls: LEVEL, TIME, FEEDBACK, Sub-division(1/4, 1/8, 1/16, 1/4T, 1/4D, 1/8T, 1/8D), Delay Type Select(DIGITAL, ECHO, ANALOG)
Reverb Controls: LEVEL, DECAY, TONE, SHIMMER, MOD DEPTH, MOD RAT
Input: 1/4" Audio Interface(impedance 2M ohms)
Output: 1/4" Audio Interface(impedance 100 ohms)
Sampling Rate: 44.1K
Sampling Accuracy: 24bit
Power Supply: DC 9V 300mA power adapter (not included)
Item Size: 37 * 9 * 3.5cm / 14.6 * 3.5 * 1.4in
Item Weight: 1190g / 2.6lbs
Package Size: 39 * 12 * 5.5cm / 15.4 * 4.7 * 2.2in
Package Weight: 1480g / 3.3lbs

Note:

The power adapter is not included.
Please use the power adapter whose polarity is positive pole outside and negative pole inside. Otherwise, the product may not work properly.

Package List:

1 * Effect Pedal
1 * User Manual(English)

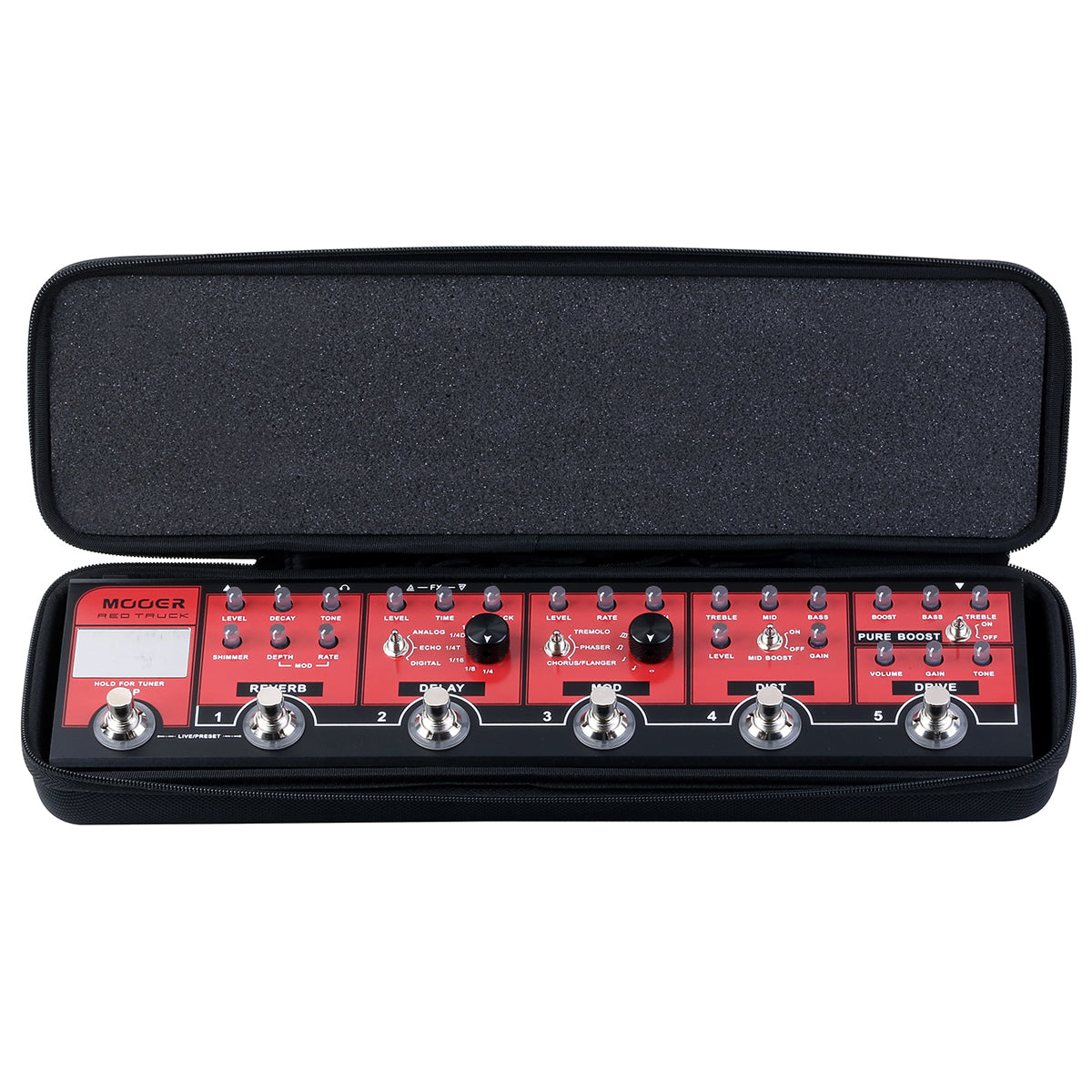

1 * Carry Case
