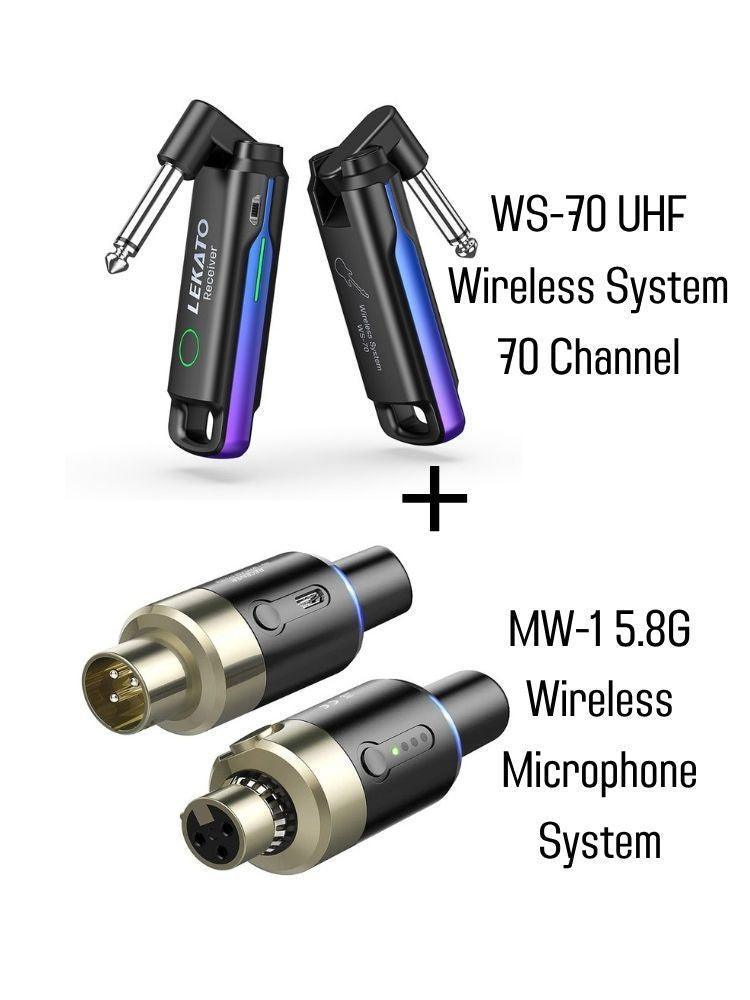

MW-1 5.8GHz Wireless Microphone System Plug-on Rechargeable Wireless Transmitter Receiver For Effector Dynamic Microphone
Power supply mode: built-in lithium battery
Cell capacity:3.7V 400mAh
Reception Sensitivity:- 85dBm
Received frequency:5 8GHz frequency
Anti-jamming method: Frequency hopping
Frequency response: 20Hz - 20KHz
Sampling rate:24-bit /48KHz
Port's type: XLR male port
Transmitter and Receiver Pairing
The default setting for MW-1 microphone wireless system is Channel 1, if you want to use other channels, please proceed according to the following steps: .
1.Turn on the receiver and the transmitter.
2.Connect the receiver to the microphone and the transmitter to the mixer or other equipment.
3.You can long press the channel switch button to pair up the channels of the receiver and the transmitter, the signal is to be paired up when the status indicator flickers blue.
4.When they' re paired successfully, the status indicators on both of the transmitter and the receiver become blue.
You can see the receiver and transmitter's battery level when you turn on the unit and the related channel's indicators.
When the status indicator starts to flicker in red, it indicates low battery, and it's time to charge the unit.
When the unit is being charged, the status indicator is in red.It goes off when it's fully charged.
Attention: You can charge the transmitter and receiver simultaneously with the Dual Port USB Cable.
1 * Wireless microphone system MW-1 Receiver
1 * Wireless microphone system MW-1 Transmitter
1 * Rechargeable Power Cable
